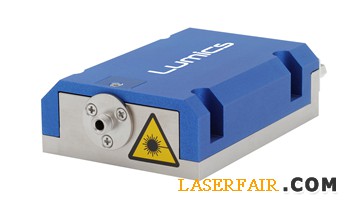

Lumics GmbH - Berlin is re-setting the benchmark for its LuOcean™ Mini series offering the currently widest and most innovative product range for diode laser ba sed devices for medical and industrial applications..

ba sed on Lumics’ >20 years experience in diode laser technology with fully in-house chip design and module production, the compact LuOcean™ Mini modules guarantee outstanding footprint/performance ratio and feature now a widely increased variety of individual customization solutions:

• Mono / dual wavelength modules combined in one device as standard products

• Triple / quadruple wavelength modules on request as per customers’ requirements

• Choice between red or green pilot laser

• Optio nal higher power red laser beam

• Fiber detection sensor (inductive or mechanical)

• Mo nitor photodiode (voltage or current signal)

• User-exchangeable exit protection window

• Key-options doubly-implemented (redundancy for special safety requirements)

• Choice of internal temperature sensor (NTC, PT1000/PT100, LM35)

• Suitable driving electro nics available

• Wavelength selecion and custom wavelengths on request

The LuOcean™ Mini modules deliver powers from 7 W to 50 W and cover standard wavelengths from 793 nm to 1470 nm. Available fiber core sizes range from 105 µm to 600 µm fibers, depending on power and application. More wavelengths and co nsiderably higher power levels are available with other modules within the LuOcean™ series.

Lumics offers strong technical support in all product life cycle phases (pre-design, integration process, after-sales service) and guarantees 100% traceability through individual testing and protocols for each module.

Lumics GmbH in Berlin is a leading manufacturer of diode lasers, fiber coupled single-and multi-mode laserlaserdiode modulesand turn key laser systems ba sed on Lumics‘ patentedin-house single emitter technology.
