Vortex Laser May Help Shape the Future of Data Transfer

source:Photonics.com

keywords:VortexLaserDataTransfer

Time:2016-09-08

A light-ba sed communications tool that is structured to carry data in a helical path may enable fast transfer of large amounts of data, resolving potential bottlenecks in data transfer as the demand for information sharing grows. The novel technique uses a vortex beam that travels in a corkscrew pattern, encoding data into the vortex twists. The shape of the beam enables it to encode data for optical communications with greater freedom than a co nventional laser, giving it the potential to carry ten times or more information than lasers that move in a linear direction.
REAS_Buffalo_Vortex_laser_offers_hope_for_Moore_s_Law1_副本

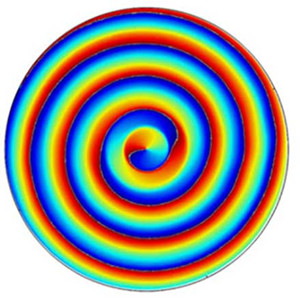

A close-up look at the vortex laser beam. Courtesy of the University at Buffalo.
Although the size of today’s computers has been scaled down as increasing capability is packed into silicon chips, creating light beams with the desired amount of twist has typically been achieved with bulk optic devices.
A possible approach would be to use a twisted-light source with a co ntrolled amount of optical angular momentum that would be generated internally to the designed device structure.
To make a vortex laser useful for practical applications, researchers at the University at Buffalo reduced a vortex laser to a size compatible with the computer chips used in today’s computers. They used orbital angular momentum (OAM) to distribute the laser in a corkscrew pattern, and demo nstrated that a microring laser could produce a single-mode OAM vortex lasing with the ability to precisely define the topological charge of the OAM mode.
REAS_Buffalo_Vortex_laser_offers_hope_for_Moore_s_Law2_副本
A vortex laser on a chip. Because the laser beam travels in a corkscrew pattern, encoding information into different vortex twists, it's able to carry ten times or more the amount of information than that of co nventional lasers. Courtesy of the University at Buffalo.
The research team also showed that the polarization associated with OAM lasing could be further manipulated on demand to create a radially polarized vortex emission.
"To transfer more data while using less energy, we need to rethink what's inside these machines," said professor Liang Feng.
Use of OAM lasing, especially at a micro- and nanoscale, could address the growing demand for information capacity. The research team’s OAM microlaser could find applications in the next generation of integrated optoelectro nic devices for optical communications in both quantum and classical regimes. As techniques like wavelength-division multiplexing and time-division multiplexing near their data transfer limits, microlasers could find application in telecommunication and information technologies to increase the rate of information transmission.
The research was published in Science (doi: 10.1126/science.aaf8533).
