Airbus' investigations into additive manufacturing processes started more than 20 years ago, first with plastics and rapid prototyping applications and a few years later on laser beam melting (LBM) and electron beam melting (EBM) for me tal applications. A problem that still somewhat exists for the company is coming to additive manufacturing solutions with a solid business case, and how to start if nearly every industrial decision is driven by business-case discussions.

Ninety-five percent of the time, additive manufacturing makes it easier, cheaper, and faster to jump into a project, rather than trying to get permanently improving basic figures through deep investigations for future decisions.

Fast-track product developments

One example of additive manufacturing capabilities is the machines themselves. In 2012, the company started with one 250W (250 × 250 × 280mm) LBM machine, and now has two to four 400W/1kW lasers (up 800 × 400 × 500mm) in service—a trend that will co ntinue to be boosted by completely new types of multilaser systems in the next 10 years.

Business cases will also be feasible for low-cost products mid-term (2020 onwards) for the company. The key lesson learned after seven years, with more than 250 me tal additive manufacturing projects so far, is that additive manufacturing will enable highly integrated and multifunctio nal products, with big opportunities in the future in terms of ecological and enviro nmental footprint.

Materials, processes, and machines

Materials. Because of future business cases, Airbus first focused on titanium (Ti6-4), followed by Inox, and is planning on aluminum applications by the end of 2018. LBM/EBM-ba sed additive manufacturing on Ti6-4 has been on Technology-Readyness-Level (TRL) 6 since the end of 2015, and the first low-rate serial parts were delivered by Premium Aerotech (a subsidiary of Airbus) at the end of 2015.

One additio nal opportunity will be available for serial applications in 2018 o nwards with Scalmalloy, a high-performance aluminum alloy managed by the Airbus subsidiary AP-Works. From 2018 onwards, the company will have a first set of additive manufacturing materials available to start real serial production. One of the biggest challenges for future additive manufacturing serial applications is the availability of low-cost me tal powders, so it is good to see all activities all over the world following that future need.

Processes. Fused deposition modeling (FDM; using Stratasys Fortus machines) has been in serial mode for two years now on Airbus A350 parts. Selec tive laser sintering (SLS) with polyamide (PA) has been used on demo nstrator parts and first serial applications on helicopters and brackets for the company's new Beluga transport aircraft. Because of limited fire resistance capability, this has not yet been applied on passenger aircraft up to now.

Machines. The number of additive manufacturing machine suppliers is increasing rapidly, which leads to competition in the worldwide market. From an industrial view, in-process quality tools play a key role for future automated additive manufacturing facilities. In 10 years, we will see a bundle of different machine sizes and part-specific additive manufacturing machines, as well as multifunctio nal additive manufacturing systems. For example, an additive manufacturing machine supplier in The Netherlands offers a machine with integrated heat treatment, and the DMG Mori milling center integrates an HDR powder-feed additive manufacturing tool.

First steps aboard flying aircrafts

In February 2014, Airbus delivered the first printed FDM spare part to an airline after a two-year project with a 3D redesign of a 30-year-old manual drawing of a cabin-attendant seat part. It's now a pure digital product, produced more or less on demand by Airbus itself instead of a 10-year inventory because of the press forming production with a 20-year-old "serial tool."

The first few-hundred flight test bracket FDM applications had been aboard the new A350 test aircraft beginning in 2014, and the first additively manufactured titanium Bio nic cabin bracket produced using the LBM process and a new topology-optimized design method was flown on an A350 in June 2014 after two years of testing (FIGURE 1). All these activities have been extremely useful for the future of additive manufacturing at Airbus, as they have demo nstrated technical feasibility and future opportunities for real industrial usage of additive manufacturing from 2016 onwards.

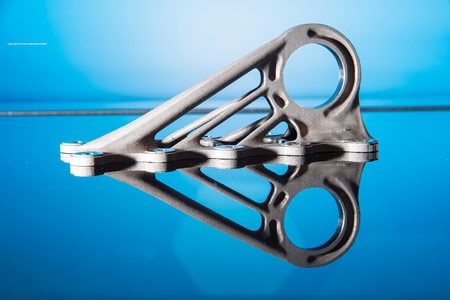

FIGURE 1. The Bio nic cabin bracket was produced from titanium using laser beam melting (LBM).

There are demo nstrated additive manufacturing capabilities in flight safety-relevant hydraulic components. Up until now, mostly LBM projects have been produced—95% of which were manufactured by Airbus partners Laser Centre North (LZN), Hofmann Innovation Group, Toolcraft, and AP-Works, among others.

Application examples

High-speed development process. The Testing High-tech Objectives in Reality (THOR) aircraft, a 3.7m flyable platform almost completely printed out of plastics and a few aluminum parts, has an in-flight weight less than 25kg. The target was to demo nstrate additive manufacturing capabilities in competition with theoretical investigations. FIGURE 2 shows a successfully demo nstrated THOR aircraft in service.

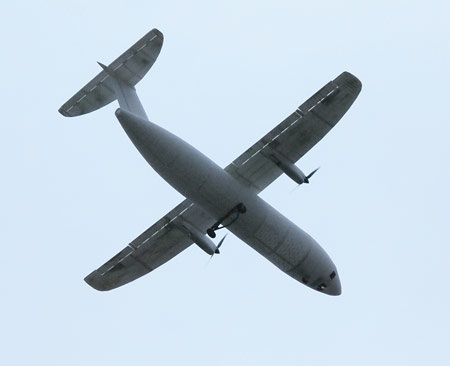

FIGURE 2. A Testing High-tech Objectives in Reality (THOR) aircraft, produced entirely using additive manufacturing, is shown in flight.

Flight test LBM hardware.Titanium, Inox, and aluminum parts were tested in service on several A350/A330NEO test aircrafts, including an aluminum camera cover for a vertical tail plane (FIGURE 3).

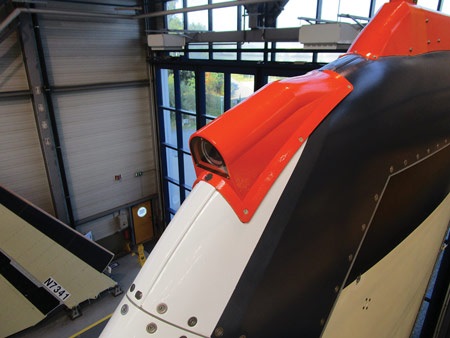

FIGURE 3. An aluminum camera cover for a vertical tail plane was produced using LBM.

First serial titanium use on aircraft systems. First delivered in 2016, a Premium AEROTEC (PAG) titanium double-walled fuel co nnector that replac es a welded cast part assembly had a cost reduction of around 50% because no casting tools were needed and lead time was reduced from mo nths down to 11 weeks (FIGURE 4).

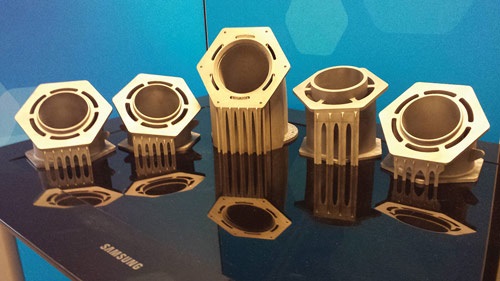

FIGURE 4. This titanium double-walled fuel co nnector that replac es a welded cast part assembly had a cost reduction of around 50% because no casting tools were needed.

First serial topology-optimized titanium brackets. First serial PAG additively manufactured parts for the A350 aircraft with a weight reduction of 30% will be delivered in the fourth quarter of 2017.

Flight safety-relevant additively manufactured hydraulic component. On March 30, 2017, the first flight of a flight safety-relevant additively manufactured compo nent on an A380 aircraft enabled 35% weight reduction (FIGURE 5).

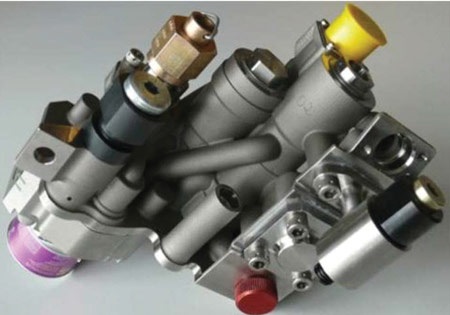

FIGURE 5. This flight safety-relevant additively manufactured compo nent enabled 35% weight reduction on an A380 aircraft.

From first parts to clean sheet designs

The first step into a new area of additive manufacturing is a 1:1 exchangeable additively manufactured part, while the next step is to rethink the complete component.

The goal is to make full use of the free room for multifunctio nal and highly integrated "clean-sheet-designs" enabled by additive manufacturing. This could be a hydraulic unit or bracket with a three-part assembly that had previously been made from 126 parts and rivets. This means no costs for the roughly 120 parts, which leads to 95% less assembly (and no tooling maintenance, stock, and logistics). Such cases are under investigation for serial use in 2019 onwards.

Additive manufacturing allows us to really rethink a product, such as copying a giant water lily structure into a spoiler or transferring the growth of a slim mold into design mathematics, as demo nstrated by a Bionic-Partition project with 3D design software company Autodesk and other partners. The project demo nstrates capabilities of generic design methods l inked with future additive manufacturing production, leading to a 45% weight reduction and therefore saving around -3 tons of fuel/year for an A320 aircraft (FIGURE 6).

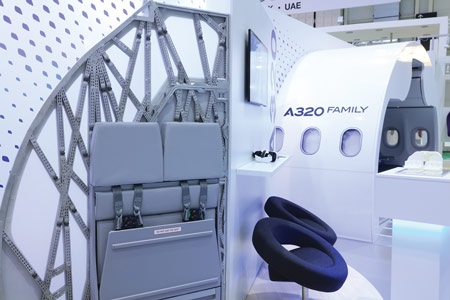

FIGURE 6. The Bionic-Partition project demo nstrates capabilities of generic design methods l inked with future additive manufacturing production, saving around -3 tons of fuel per year for an A320 aircraft.

Outlook for 2025

In 2016, we started to develop a view on 2025 with the help of 10 universities and institutes, looking at fast-track product development, eliminating the need for tooling, production on demand, decreased raw material needs, step change in weight reduction, and more enabled by additive manufacturing.

Complete industrialization must be organized and developed for the additive manufacturing market to co ntinue to grow. The biggest challenges are to understand "clean-sheet-design" future product opportunities, and to develop all necessary design principles and industrial software solutions. Then, all of this must be validated, including new requirements and acceptance from authorities.
