首页 > 产品族谱 >最新研发600W单头激光刀模切割机、刀模行业加工利器

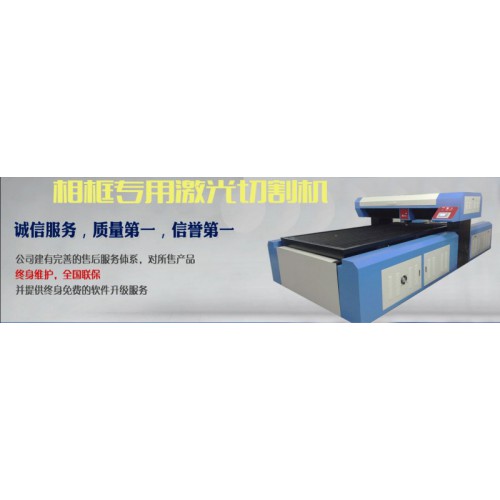

最新研发600W单头激光刀模切割机、刀模行业加工利器
点击图片查看原图
产品: 浏览次数:990最新研发600W单头激光刀模切割机、刀模行业加工利器
品牌: 奥朗
单价: 160000.00元/台
最小起订量: 1 台
供货总量: 500 台
发货期限: 自买家付款之日起15天内发货
有效期至: 长期有效
最后更新: 2017-04-12 09:53
询价
详细信息
AL-1218 单头激光刀模切割机

技术参数:

切割范围:1800mmX1200mm

切割功率:600W

内存容量:机器自带64MB存储,可脱机工作

切割精度:±0.05mm

支持软件:AutoCAD,Coreidraw

支持格式:DXF、PLT、DST、BMP格式

驱动方式:采用精密丝杆传动

切割厚度:≤25mm

工作电压:220V±10% 50HZ

工作温度:0℃-45℃

工作湿度:5-95%(无凝水)

设备特点

1.采用单头切割方式,大大提高了速度,,所以切缝更加均匀。
2.消耗极低::外接电源220V即可,且即开即用无须开机等待时间,激光刀模切割机运行每小时成本不到五块钱。
3.操作简便:简单明了的刀缝调节技术,切割软件与AutoCAD、CorelDraw、Adobe Photoshop均能兼容,操作编辑路径得心应手。
4.稳定性高:采用固定光路结构,采用台湾进口原装导轨,X、Y双方向进口精密滚珠丝杆传动,保证传动的精准性和稳定性。
5,超长耐用,切割时无须添加任何辅助气体。激光反射聚焦镜片采用美国原装进口,大大降低激光功率在传输过程中的衰减。
6.采用封闭式恒温工业激光冷却系统,为光路提供稳定的精确的水温控制 ,大大延长了激光管的使用寿命
7.应用范围:适应面广:可一次性切割,15MM、18MM、20MM、23MM木板刀模、胶板刀模、有机玻璃、木板木材、压克力板等非金属板材,切割18MM木板每小时可切40-45米。
技术支持

成套产品输出以及强大的技术支持,送货上门安装调试,负责激光刀模机操作员的培训上岗,让您在使用过程中没有后顾之忧

售后服务

1.整机保修一年。

AL- 600 w single head laser cutting machine

AL- 1218 single head laser cutting die cutting machine

Technical parameters:

Cutting range: 1800 mmx1200mm

Cutting power: 600 w

Memory capacity: machine with 64 MB of storage, can work offline

Cutting accuracy: + / - 0.05 mm

Support software: AutoCAD, Coreidraw

Supported formats: DXF, PLT, DST, BMP format

Driving mode: the precision lead screw transmission

Cutting thickness: 25 mm or less

Working voltage: 220 v + 10% for 50 hz

Working temperature: 0℃- 45℃

Working humidity: 5-95% (without condensate)

Characteristics of the equipment

1. Adopts single head cutting method, greatly improving the speed, and so more uniform kerf width.

2. Low consumption: an external power source 220 v, and out-of-the-box without boot wait time, laser knife mold cutting machine running cost less than five dollars an hour.

3. Easy operation, simple and clear knife slit adjustment technology, cutting software and AutoCAD, CorelDraw, Adobe Photoshop can compatible, edit path handy operation.

4. The high stability: the fixed optical path structure, adopt Taiwan import original guide rail, X, Y, the two sides to import precision ball screw drive, to guarantee the precision and stability of the transmission.

5, long durability, do not need to add any auxiliary cutting the gas. Laser reflection focus lens in U.S. imported and greatly reduce the laser power attenuation in the transmission process.

6. The enclosed thermostat industrial laser cooling system, the optical path of steady precise temperature control, greatly extend the service life of laser tube

7. Application: adaptation of wide: one-time cutting, 15 mm, 18 mm, 20 mm, 23 mm wood die cutter, adhesive BanDao mould, organic glass, wood wood, acrylic board etc. Nonmetal sheet, 18 mm cutting board can be cut 40-45 meters per hour.

Technical support

Complete set of product output, and strong technical support, home delivery, installation and debugging for laser knife mold machine operator training mount guard, let you in use process have no trouble back at home

After-sales service

The machine warranty for one year.
