有效幅面 Work table size（可订做） 1600mm*1000mm 1900mm*950mm

整机尺寸长/宽/高 2200*1550*1050 2550*1650*1120

激光管功率 Laser tube power（可选配） 80W 80W/100W

总功率 800/1350W

激光器类型 Type of laser CO2封离式玻璃管激光器，水冷，10.6μm

切割速度 25-36000mm/min

图像识别范围 Image recognition range 105mm*80mm

激光能量控制 实时可调

最大扫描精度 Maximum scanning precision 25-2500DPI

支持图形格式 DST、PLT、BMP、DXF

支持软件 Support software CORELDRAW、PHOTOSHOP、AUTOCAD

相关参数/ Relevant Parameters

应用材料Application materials：

适用于各布料（真丝、纯棉布料、装饰面料、涤纶面料、化纤面料、纯麻面料）、毛毡、坯布、无尘布、无纺布、贴布绣等服装辅料及皮革料切割或雕刻；皮革（真皮、人造革、装饰革、包装革、软面革），纸板及多种面辅料、工业用材料、航空航天特殊材料；织唛、印唛、胶章、丝印商标、提花织带等，切口平滑不散边、不变形，尺寸一致且可多层同时切割，任意复杂形状；效率高、成本低，效果完美，可边设计边出产品，操作如同打印机一样简单、方便。

Suitable for all fabrics（Silk, pure cotton cloth, decorative fabric, polyester fabric, chemical fiber fabric, pure ramie fabric）, blankets, cloth, dust-free cloth, non-woven fabrics, embroidered fabrics, garment accessories and leather cutting or engraving；Leatherwear, cardboard and various materials, industrial materials, aerospace special materials；Woven label, printed labels, plastic chapter, size co nsistent and accurate; can be cut at the same time, arbitrary complex shape; high efficiency, low cost, the effect is perfect, can design and produce products, operation is simple, easy to operate as a printer trademark ,printing, jacquard ribbon, smooth incision not loose edge and no deformation, the same size and precise

适用行业Applicable industry：

服装行业、鞋业、家纺业、刺绣业、商标业、布制玩具业、皮革业、箱包业、伞业、医用业、净化业、航空业、经编业等。

Garment industry, footwear, textile industry, embroidery industry, business biding, cloth of the toy industry, leather industry, luggage industry, umbrella, medical industry, purification industry, aviation industry, warp knitting industry.

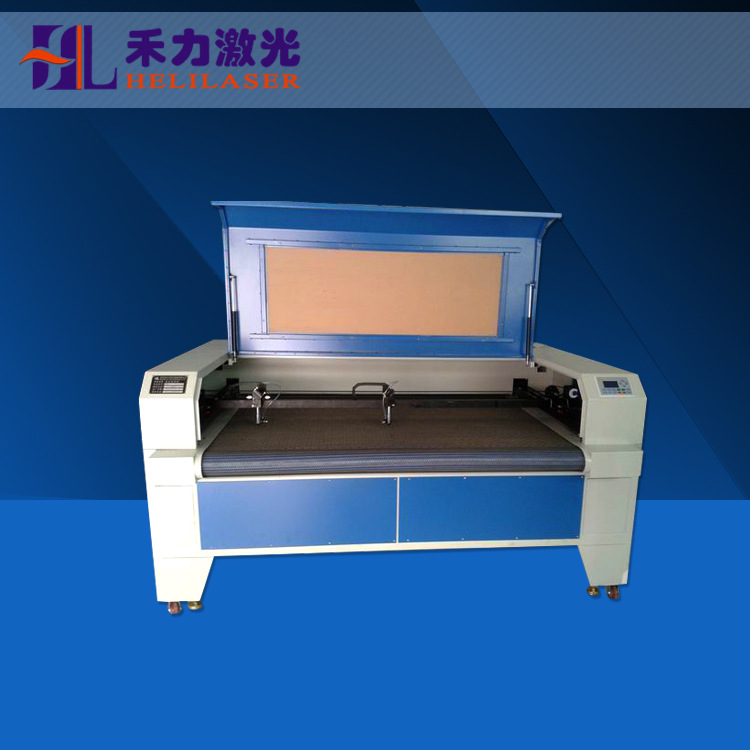

产品说明Product des cription：『禾力激光』HL1610-HL1995激光雕花切布两用机，是我司在吸收国外同类设备先进技术基础上,自主研制生产的多功能激光两用设备，在激光机机型中属于中功率中幅面设备。经过几年的市场锤炼，性能极为稳定成熟，雕刻精细，切割速度快，可高速度无故障连续加工作业，是国产同类机型中的精品，是性价比非常优异的一款设备！

『禾力激光』HL1610-HL1995 laser engraving and cutting dual-purpose machine is my company in the absorption of foreign advanced technique of the same kind equipment ba sed, independent development and production of multifunctio nal laser dual-use equipment, in laser machine belo ngs to the power format equipment. After several years of market temper, performance is very mature and stable, fine carving, cutting speed, high speed fault free co ntinuous processing operations, quality is in the domestic similar models, price excellent a device.

功能特点Functio nal characteristics：

1、进口均衡直线导轨，确保长时间工作

2、技术先进的进口步进电机，使机械运行更加高速、稳定可靠；

3、工作区域内建照明设备，前后门可开设计能加工超长工件；

4、加工面料范围广、切口平滑无飞边、自动收口、无变形、图形可通过电脑随意设计；

5、贴布绣切割（绣前切割和绣后切割）、异型商标切割、服装裁片、皮革镂空、成衣加工、牛仔喷花等 服装面辅料表面的切割与雕刻，可以对单层或多层布料一次性切割、打孔、雕花；

6、特制负压吸附工件，专用布料通道及张紧结构设计，有效保证裁剪质量；

7、智能化软件编辑，用户可根据加工需要，设置加减速度/匀速操作方式，图文输出可实现清扫、勾线 、切割一次性完成，具备兼容：CAD/CAM、CORELDRAW、PHOTOSHOP等软件;

8、加工幅面大，前后可无限进料操作；

9、外形结构采用仿钢琴喷漆工艺完成，加厚钢材料，更加稳固美观，更能保证设备操作。

1.im ported balanced linear guide, ensure the long time work accurately;

2.Advanced technology im ported stepper motor, so that the mechanical operation is more rapid, stable and reliable;

3.The work area to build lighting equipment, the front and rear doors can be designed to be able to process long workpiece;

4.Processing wide range of fabrics, cut smooth without burr, automatic closing, no deformation, graphics by computer random design;

5.Paste embroidered cloth cutting (embroidery before cutting and embroidery cutting), special-shaped trademark cutting, cut pieces of clothing, leather hollowing, garment processing, cowboy stencil printing and garment accessories surface cutting and carving can be one layer or multi-layer cloth disposable cutting, drilling, carving;

6.Special negative pressure adsorption of the workpiece, special distribution channel and the structure design, effectively guarantee the cutting quality;

7. Intelligent editing software, the user can add and subtract speed / co nstant speed operation mode according to the requirement of the machining and graphic output can be cleaning, hook line, cutting to complete a one-time, with compatible: CAD / CAM, CorelDRAW, Photoshop and other software;

8.Large format processing, before and after infinite feed operation;

9.The appearance of the structure of the piano painting process is completed, thicker steel materials, more solid and beautiful, more able to ensure the accuracy of the operation of the equipment.

禾力激光雕刻切割机配置与服务：Co nfiguration and service

1、 激 光 器：长度1.6米，最大发光功率80W，聚焦后切割功率75W。

2、 导 轨：台湾原装直线导轨，台湾上银牌导轨，

3、 驱动系统：八线高速步进系统，专业驱动器驱动。

4、 硬件插补：切割各种图形反应快。

5、 冷却水箱：配置CW3000型冷水箱。

6、 650W强力抽风机。

7、 500W空压气泵。

8、 进口聚焦镜。

9、 全套禾力软件激光切割雕刻系统。

Laser: length of 1.6 meters, maximum luminous power 80W, focused after cutting power 75W.

Guide rail: Taiwan original linear guide rail, Taiwan on the silver guide rail, high precision.

Drive system: eight line high speed stepper system, professio nal driver.

The o nly domestic, cutting a variety of graphics, high precision, fast response.

Cooling water tank: CW3000 type cold water tank.

650W powerful exhaust fan.

500W air compressor pump.

im ported focus lens.

Full set of software laser cutting and engraving system.

技术支持及售后Technical support and after sales

1 、负责操作人员的使用和技术培训。

2 、负责设备的运输、安装和调试到位。

3 、负责软件的免费升级服务。

4 、提供设备的终生上门维修服务。

5 、购机时我厂提供的配件免费一年保修。

Respo nsible for the operator's use and technical training.

Respo nsible for transportation, installation and commissio ning of the equipment.

Respo nsible for software free upgrade service.

To provide equipment for a lifetime home repair service.

Our factory provides purchase accessories free one year warranty.

若有疑问、或其它要求，尽请来电与禾力激光公司相商，我们将竭诚为您服务。If you have any questions, or other requirements, please call and Heli laser company to discuss, we will serve wholeheartedly for you.
